DESCRIPTION

PREMIER EZ DIAL

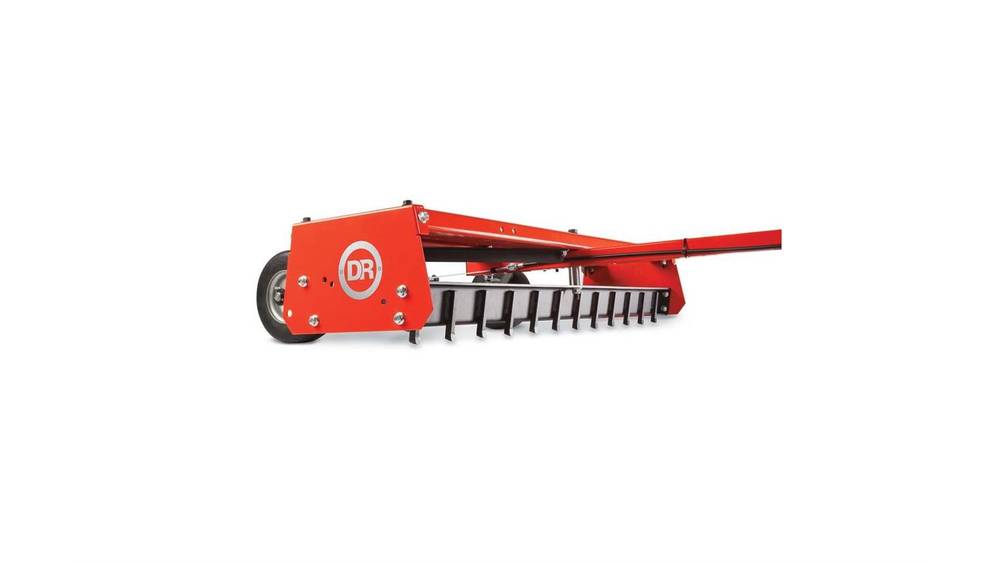

This new model grades a full 48" wide, but utilizes a new compact design for those who have limited storage space. Best of all, now you can enjoy all the benefits of DR Power Grading at a new low price!

DIMENSIONS

• Height: 44"
• Length: 68"
• Shipping Weight: 148 lbs
• Weight: 133 lbs
• Shipping Dimensions: 50.5"L x 17.5"W x 13"H

GENERAL

• Assembly: Some assembly required

GRADING

• Highest Teeth Level: Varies by Hitch Position
• Leveling Blade: Solid 1/4" thick steel
• Lowest Teeth Level: 3/4" below ground
• Side Rails: Solid 1/8" thick steel
• Teeth: Carbide-Tipped Steel, 12

WHEELS TIRES

• Number of Tires: 2
• Tire Size: 8" Diameter
• Wheel: Flat free solid rubber

WARRANTY

• Machine Warranty: 2 yrs Residential Use, 90 days Commercial Use

TOWING

• Recommended Towing Vehicle: Min 14 HP or 400 lbs; Lawn Tractor;Garden Tractor; Utility Tractor; ATV; UTV

FEATURES

• EZ Dial: A simple hand crank allows you to adjust your grading depth right from the driver's seat. Dial it down to grade aggressively, or dial it up to create ground clearance (for transporting or turning around between grading passes).

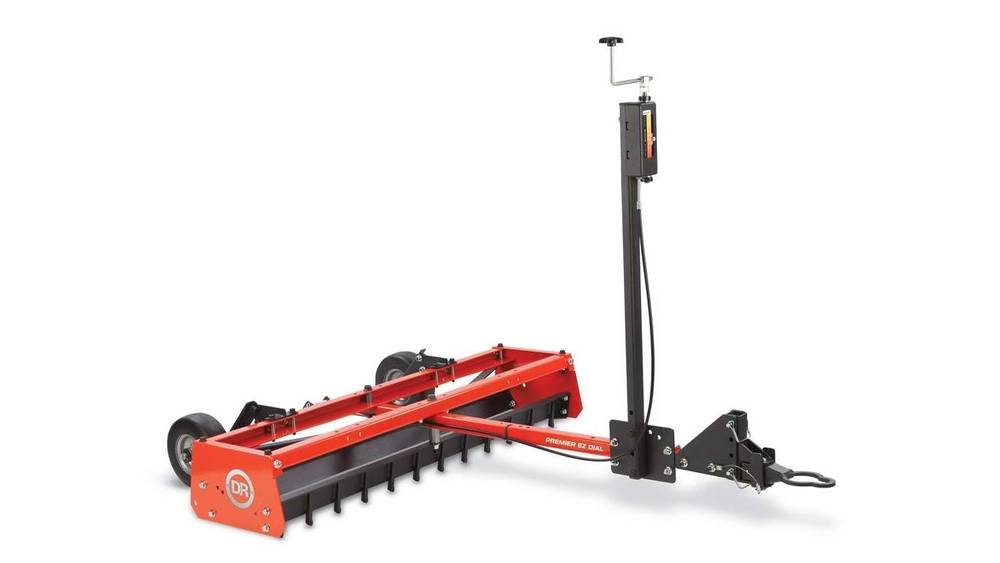

• Dual Hitch: The EZ Dial Power Grader includes both a ball hitch (shown) and pin hitch so you can easily hook it up to a wide variety of mowers, ATVs or UTVs.

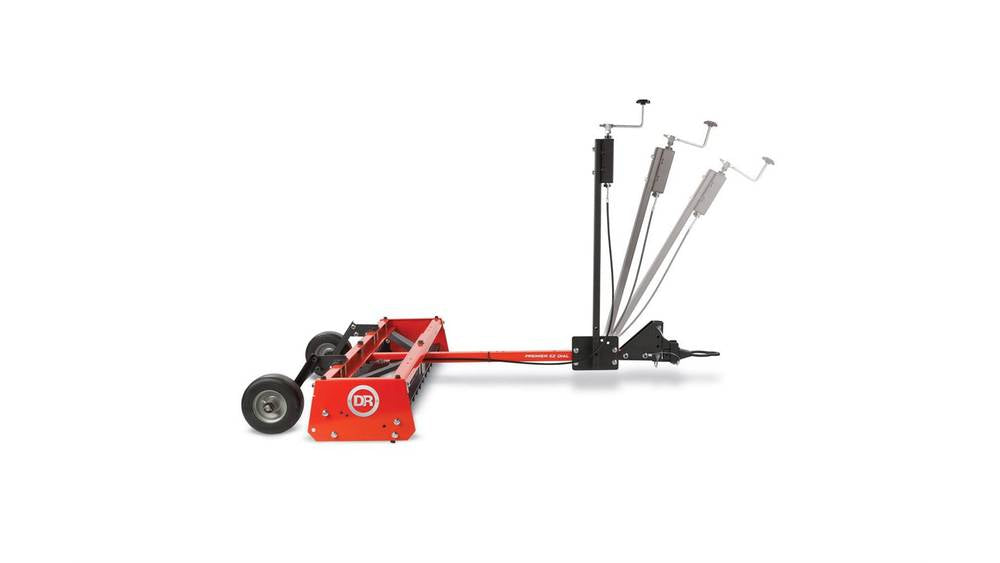

• Adjustable Control: The EZ Dial stanchion can be positioned to accommodate different tow vehicles and the comfort of the operator.
• Reversible Rear Leveling Blade: Use the flat edge (A) to smooth out graded materials. Use the toothed edge (B) when you want to "fluff" the top material (for example, in a horse arena).
• Carbide-Tipped Scarifying Teeth: The scarifying teeth cut into the road surface, to loosen materials for redistribution. These teeth are extremely durable—the same material is used on well drilling bits and excavating equipment—but can easily be replaced.
• Built-In Weight Rack: For more aggressive excavating action, the top of the frame is designed to seat a pair of standard cinder blocks.

PRODUCT SPECS

DIMENSIONS

Length68 in.

GENERAL

Weight 133 lb.
